Su-27 Flanker

From Airgoons
Jump to navigation Jump to search

Originally a part of the aircraft selection in LOMAC, the Su-27 was ported over to DCS through the FC3 package. It was also the subject of Eagle Dynamics first foray into flight simulators. While it is available as an individual purchase, there is no reason not to get the full Flaming Cliffs package instead.

Just like the other FC3 planes, the Su-27 is more designed to be controlled through a standardised set of keyboard shortcuts than through any kind of advanced set of peripherals, nor does it feature an interactive “clicky” cockpit.


The Su-27 is to the MiG-29 roughly what the F-15 is to the F-16: larger, heavier, more focused on air-to-air with appropriate improvements (and losses) in its systems. It has:

  • The same active radar and passive IRST guidance as the MiG-29 in terms of operation, but improved in actual capability.
  • Medium-range semi-active R-27ER and IR-guided R-27ET missiles for BVR combat.
  • A helmet-mounted target designator for high-angle, off-axis target locking.
  • Tactical data linking that displays detected enemy and friendly aircraft along with navigation data on the HDD.
  • In-flight refuelling capability.
  • The same old Russian RWR as always.

Comes with the built-in campaign Su-27 - Fortress Mozdok.

Flying the Su-27

One key improvement over the MiG-29 comes almost inherent with the differing design goal of the Su-27: it is meant for long-range patrols and intercepts rather than quick tactical interventions, and its larger airframe allows it to carry the extra internal and external fuel (and weapons) required to fulfil that role.

Cockpit overview

Su-33 Dashboard

The above image shows the Su-33 cockpit, but since the 33 (also known as the Su-27K) is pretty much just a naval version of the Su-27, the internals are almost exactly the same in terms of layout and functionality.


Also included with the FC3 package is a Chinese export variant of the Su-27 called the Shenyang J-11 “Flanker B+”. It is functionally identical to the regular Su-27 — the only real difference is in the visual outside and inside appearance, most notably with Chinese markings inside the cockpit.

Also, unlike the Su-27, it can carry active-homing R-77 missiles, making it much more of a match for the SPAMRAAM-equipped F-15C.

Getting into the air

The process of getting the Su-27 into the air is the same as with all FC3 aircraft:

  • Make sure you have loaded the correct weapons.
    (This can only be done with the canopy open and engines off, press LAlt' to open the outfitting menu.)
  • RShiftL to turn the power on.
  • LCtrlC to open or close the canopy, as needed.
  • RShiftHome to start both engine at the same time.
    (RShiftEnd stops both engines; RAlt/RCtrl + Home/End starts and stops the left and right engines individually.)
  • Wait for the engines to spool up and stabilise.
  • Num+/Num- controls the throttle; increase it carefully to get going and do not go too fast.
    (W controls wheel brakes; be particularly careful when turning since doing it at high speed will make you tip over, scrape your wings, catch fire, explode and — worst of all — become the subject of innumerable screen shots.)
  • Use Z and X to control nosewheel steering (and also rudder) to make your way to the runway and line up.
  • LShiftF lowers the flaps — they should be in the middle position for takeoff.
  • Throttle up to max and try to stay in a straight line as you barrel down the runway.
  • Pull back gently to take off.
  • Raise landing gears with LCtrlG; raise flaps with LCtrlF.
    (You can generally use G and F to simply toggle gears and flaps, but as a rule during take-off you do not want to accidentally lower them, loose speed, wobble around, and inevitably crash into the ground, so using the specific “raise” binds is a bit safer.)

Shooting something

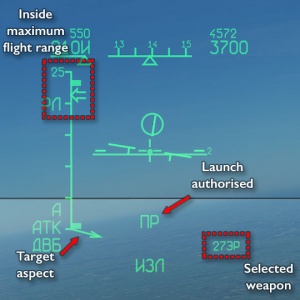

Su-33 HUD while tracking a target in BVR mode.
Su-33 HDD while tracking a target in BVR mode.

Since the Su-27 uses the same systems and weapons, employing it in air-to-air combat is the same as the MiG-29. The main difference over the procedure in the older MiG-29 is the data linking of targets and of navigation information that is shown on the HDD, along with the current sensor sweep area and the effective engagement range of the currently selected weapon, all of which offers a more visual way of finding and manoeuvring into firing position relative to your target. Aside from some differences in graphics and symbology, the HUD and HDD functions exactly the same as in the Su-33.

  • Turn radar (I key) or electro-optical systems (O key) on.
    (If using the radar, you can also use RAltI and RShiftI to change the tracking mode and frequency.)
  • Press 2 to enter BFR master mode.
  • Press D to select a missile type.
  • Use RShift, and RShift/ to shift the scan zone left or right to where you expect the target to be.
  • If using the radar, and based on GCI or AWACS information, use RShift; and RShift. to set the predicted relative altitude (in km), and RCtrl- and RCtrl= to set the predicted range to the target.
    (This both filters targets and sets the elevation of the radar antenna. Get it wrong and you will see nothing.)
  • If a potential target is detected, dotted lines will appear on the HUD — the more dots, the larger the target; the higher up on the HUD, the longer the range.
    (If using the radar, IFF will also be in effect: a double line means a friendly target; a single line means enemy.)
  • Use the ;, ,, . and / keys to move the TDC over to a target. Press Enter to enter single-target tracking.
  • On the left side of the HUD, bars will indicate the launch zone of the selected weapon.
  • If launch parameters are met, “LA” (“ПР” in Russian cockpits) will be displayed.
    (If IFF is used, launch request will be denied for any friendly targets.)
  • Press Space to fire.
    (If using a semi-active radar missile like the R-27R or -ER, you must maintain STT lock-on until the target is hit.)

Once in the merge, you will probably want to switch to one of the close-range master modes, like longitudinal mode (press 6 key) or HMD mode (5) and use those in conjunction with the radar (I) to lock and engage targets.
